Water Cooled Heat Exchanger
Seal Support Systems · Water Cooled Heat Exchanger
Water Cooled Heat Exchanger
Product Overview

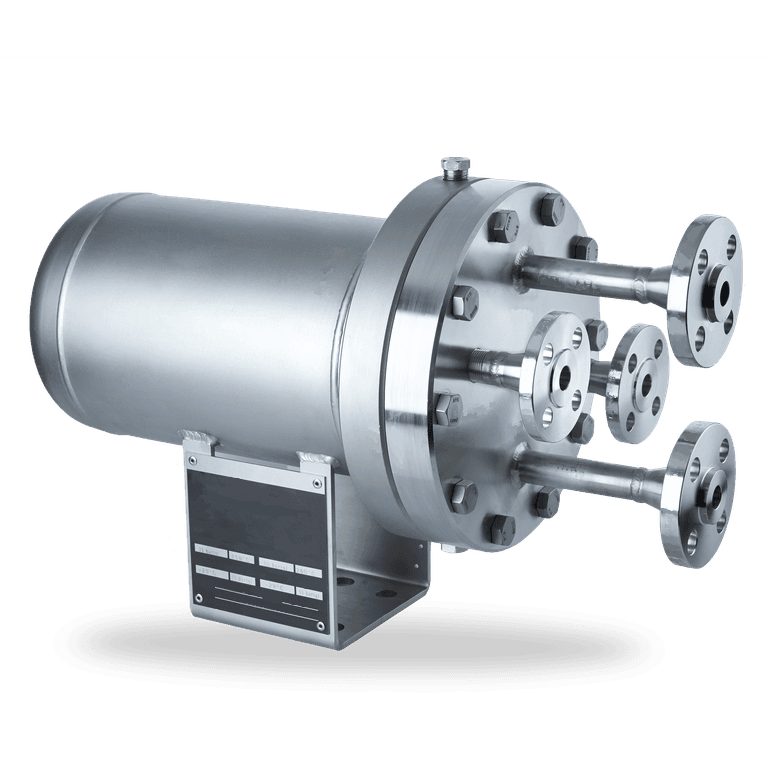

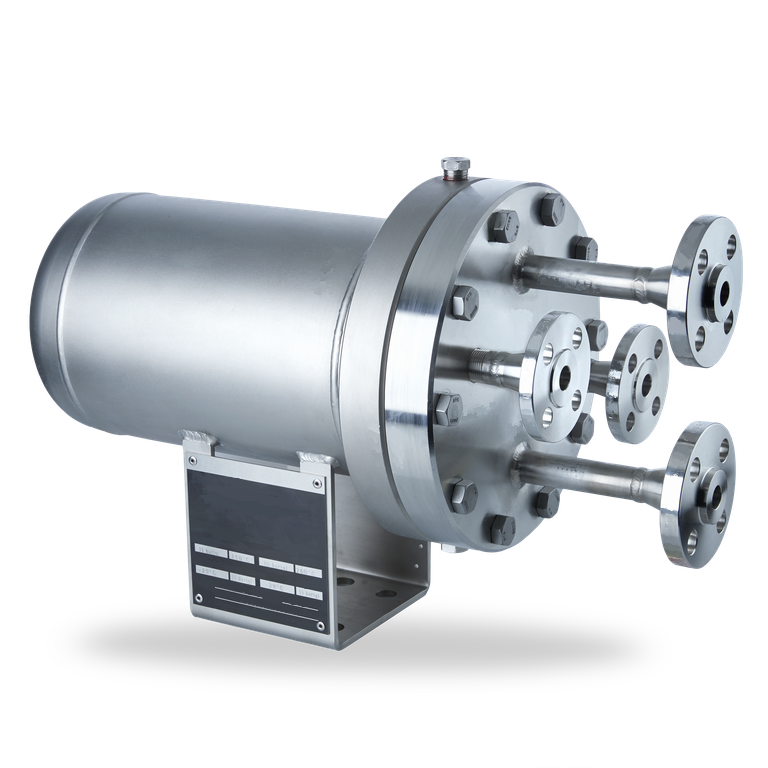

Sweden water cooled heat exchanger is the 316/L stainless steel pressure reservoir with internal cooling coil are compatible with variable barrier/buffer fluid types. Available with a comprehensive range of standard options. CE mark in accordance with Pressure Equipment Directive (PED) 97/23/CE provided to countries within the European Community. Welding in accordance with ASME VIII (welders qualified to ASME IX).
Technical Specifications
- Model: SE Heat Exchanger
- Reservoir Capacity: 9 L
- Tube Capacity: 0.2 L
- Allowable Pressure: 16 bar
- Temperature: – 60 °C to 160 °C
- Process Connections: G, NPT, Flange
- Connecting Size: 3/4 inch, 1 inch, 1/2 inch
Applications
Process pumps, Agitation equipment and reaction Kettles and other rotating equipment.
Standards
Complies with PED 2014/68/EU and PED 97/23/CE and Circulation based on API 682 / ISO 21049: Plan 52, Plan 53A.
Media Compatibility
Compatible with variable barrier / buffer fluid types.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirement.
