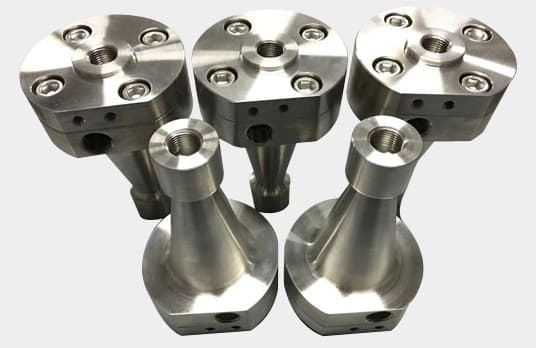

Sweden CS 3/4 G Cyclone Separators

Product Overview

SE CS 3/4 G Cyclone Separators. Cyclone separators are used to clean mainly aqueous liquids containing dirt and solids (e.g. in circulation systems of sewage, sludge or pipeline pumps). The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid (recommended by API 682 4th edition: at least double), and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar in accordance with API 682). The viscosity of the medium is also a factor that needs to be taken into account. API Plan-53B accumulator-based seal support systems utilize a bladder to maintain system pressure to pressurized dual seals and absorb barrier fluid thermal expansion while separating the pressurizing gas and barrier fluid. A range of heat exchangers can be packaged with the system, selection dependent on available plant utilities. Installation The cyclone separator must always be installed in the vertical position. The pressure at the outlets (C) and (B) must be lower than at the inlet (A). Cleaned liquid is conveyed to the top (B) and the separated dirt to the suction port of the pump.

Technical Specifications

• Model: SE CS 3/4 G
• Bladder Accumulator Capacity: 20 L
• Allowable Pressure: 200 bar
• Temperature: 125 °C
• Housing / Cover & O-Ring: SS316 & Viton
• Process Connections:  G, R, NPT, Flange
• Connecting Size: 3/4 inch, 1 inch
• This product has 3 different types of sub models, with different configuration of pressure and flow meter.
