SE-MG9
Mechanical Seals · Elastomer Seal
SE-MG9
Product Overview

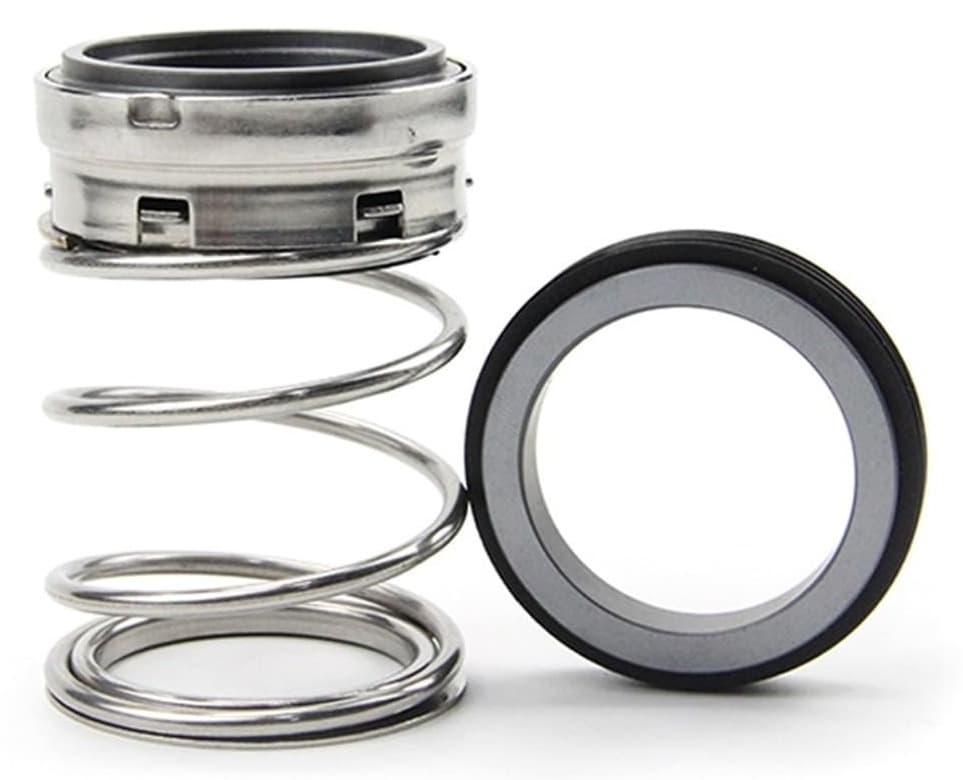

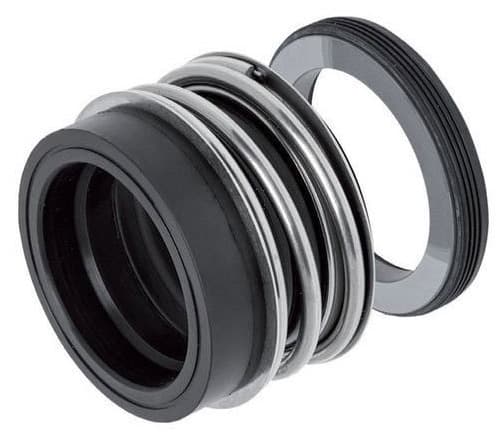

SE- MG9 Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps. Single end, unbalanced, independent direction of rotation, rubber bellow transmission. This component has a compact structure with good compatibility and easy installation. The rubber bellow design prevents possible radial run-out so that the floatability of the rotary ring is increased.
Technical Specifications
- Model: SE-MG9
- Design: Unbalanced
- Pressure: 0.8 MPa or less
- Temperature: –20°C to 90°C
- Linear Speed: 10 m/s or less
- Size Range: ID 10 mm to 100 mm
Materials
Rotary Ring: Carbon / SiC / TC Stationary Ring: Al2O2 / SiC / TC Elastomers: NBR / EPDM / Viton Springs: SS304 / SS316 Metal Parts: SS304 / SS316
Applications
widely used in centrifugal pumps, piping pumps, sewage pumps, immersible motors, screw pumps, vacuum equipment and other rotary devices for sewage treatment, city water supply, chemical engineering, pharmacy, food processing, and paper making.
Standards
Complies with DIN24250, ISO3069, GB6556, EN12756.
Media Compatibility
Oil, Water, Sewage, Food and Beverage, Paper Pulp and other Weak corrosive content.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirement.
