SE-MG1
Mechanical Seals · Elastomer Seal
SE-MG1
Product Overview

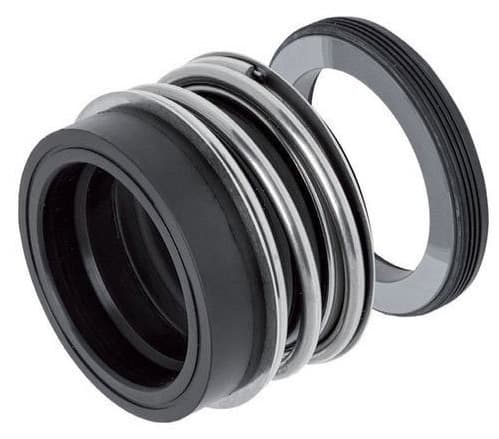

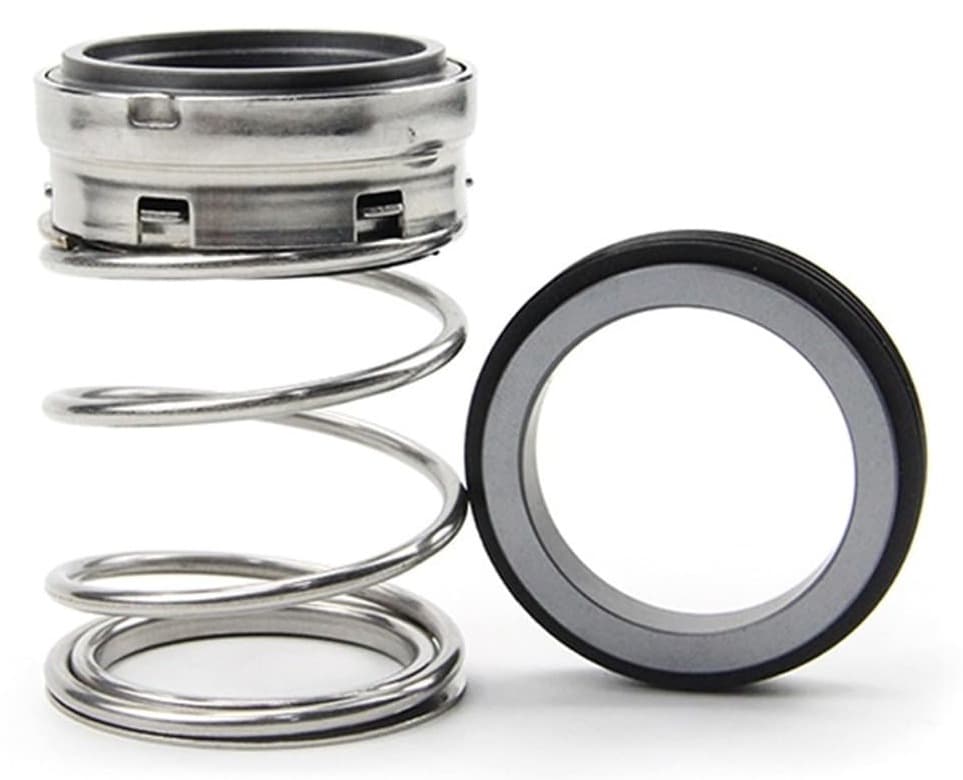

SE-MG1, Mechanical Seal for Water Pumps, Centrifugal Pumps, Submerged Motors, Vacuum Pumps, and Piping Pumps. Single end, unbalanced, fixed direction of rotation, rubber bellow, rubber bellow transmission mechanical seal. This component seal has a compact structure and good compatibility and it is easy to install. The bellow and the spring provide pressure compensation to the sealing faces. The rubber bellow design can prevent radial run-out so the floatability of the rotary ring is increased.
Technical Specifications
- Model: SE-MG1
- Design: Unbalanced
- Pressure: 1.0 MPa or less
- Temperature: –20°C to 120°C
- Linear Speed: 10 m/s or less
- Size Range: ID 10 mm to 110 mm
Materials
Rotary Ring: Carbon / SiC / TC Stationary Ring: Al2O2 / SiC / TC Elastomers: NBR / EPDM / Viton Springs: SS304 / SS316 Metal Parts: SS304 / SS316
Applications
mainly used in water pumps, submerged motors, piping pumps, sewage pumps, vacuum equipment and other rotary devices for sewage treatment, city water supply, chemical engineering, pharmacy, food processing, and paper making.
Standards
Complies with DIN24250, ISO3069, GB6556, EN12756.
Media Compatibility
Oil, Water, Sewage, Food and Beverage, Paper Pulp and other Weak corrosive content.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirement.
