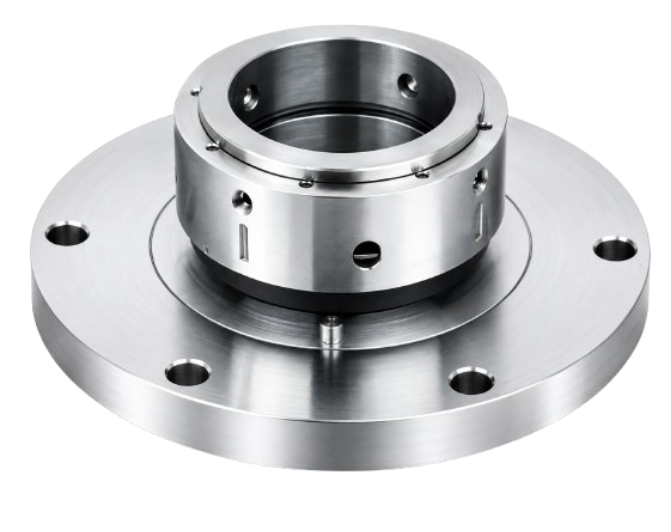

SE-E2-Single Dry Seal
Mechanical Seals · Agitator Seal
SE-E2-Single Dry Seal
Product Overview
SE-E2 Mechanical Seal for Vertical Type Agitation Equipment. E2 is the single end is balanced. The component is single dry running cartridge seal. Special self-lubricated faces are used. this seal can replace gland packing conventionally and economically. An innovative seal setting collar simplifies the installation even on large diameter shaft. hydraulically balanced stationary face is free from any clamping stresses which cause leakage during start-ups. The seal can tolerate large radial run out.
Technical Specifications
- Model: SEagel
- E-E2
- Design: Balanced
- Pressure: Full vacuum to 0.6 MPa
- Temperature: –40°C to 120°C
- Linear Speed: 1 m/s or less
- Size Range: ID 25 mm to 150 mm
Materials
Rotary Ring: SiC / Carbon Stationary Ring: TC / SiC Elastomers: NBR, Viton, EPDM, Aflas, PTFE, FFKM Springs: SS304, SS316, HC-276 Metal Components: SS304, SS316, SS316L
Applications
Mainly used in top driven Vertical type agitation equipment, Pharma Reactors, Fermentors, Multimills and Rotocon dryers.
Standards
Complies with DIN 28138.
Media Compatibility
water, oil, weak acid. weak alkali, and other normal mediums
Customization
Material options available to meet specific operating requirements.
